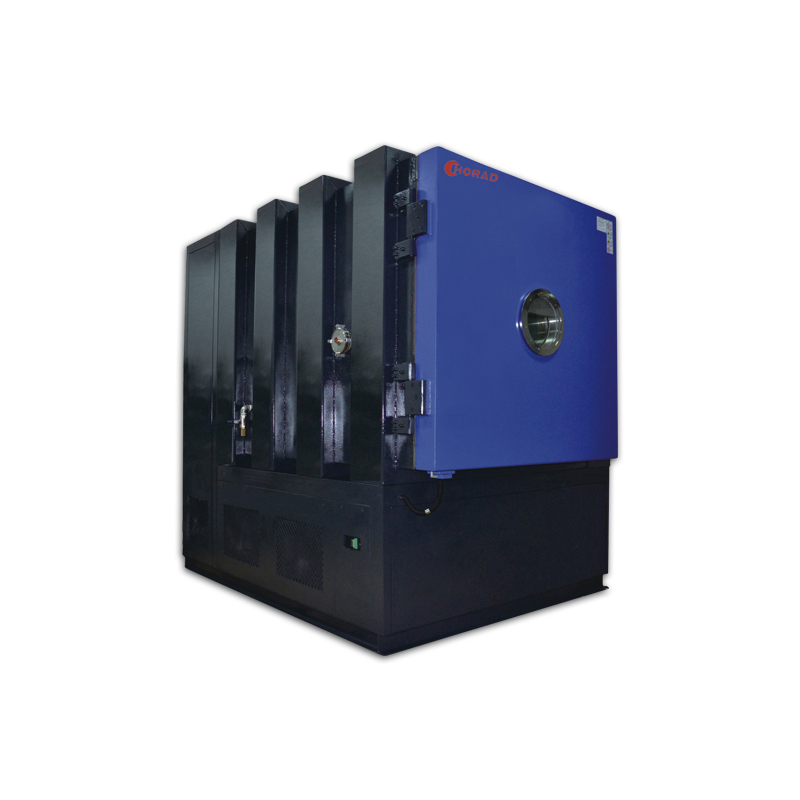

Low pressure test chamber

Product features

The external pressure bearing method is adopted, and the heat capacity of the inner box is small

Magnetic fluid seal transmission technology

The refrigeration system has the advantages of energy saving, thunderability and low noise

c

7:00 T "t color touch screen controller;

Remote control and fault diagnosis;

Undertake other non-standard requirements of users

Design basis

As well as the other standards such as MIL-STD-202F, MIL-STD-810F, etc.

GB/T 2423 1-2008 Test A: Low Temperature Test-IEC 60068-2-1;

GB/T 2423.2-2008 Test B: High Temperature Test--lEC60068-2-2

GB/T 2423.21-2008 Test M: Low Pressure Test--lEC60068-2-13

GB/T 2423.25-2008 Test Z: Low Temperature /Low Pressure Test --IEC60068-2-40

GB/T 2423. 26-2008 Test Z: High Temperature/Low Pressure Test--IEC 60068-2-41

GJB 150.3A-2009 Part 3: High Temperature Test

GJB 150.4A-2009 Part 4: LOw Temperature Test

Remarks

Other technical indicators shall be implemented according to national standards.

Damp heat function can be selected, and the pressure bearing structure is internal pressure bearing structure

Low pressure: large cellar volume walk-in equipment or thermal vacuum test chamber can be selected
