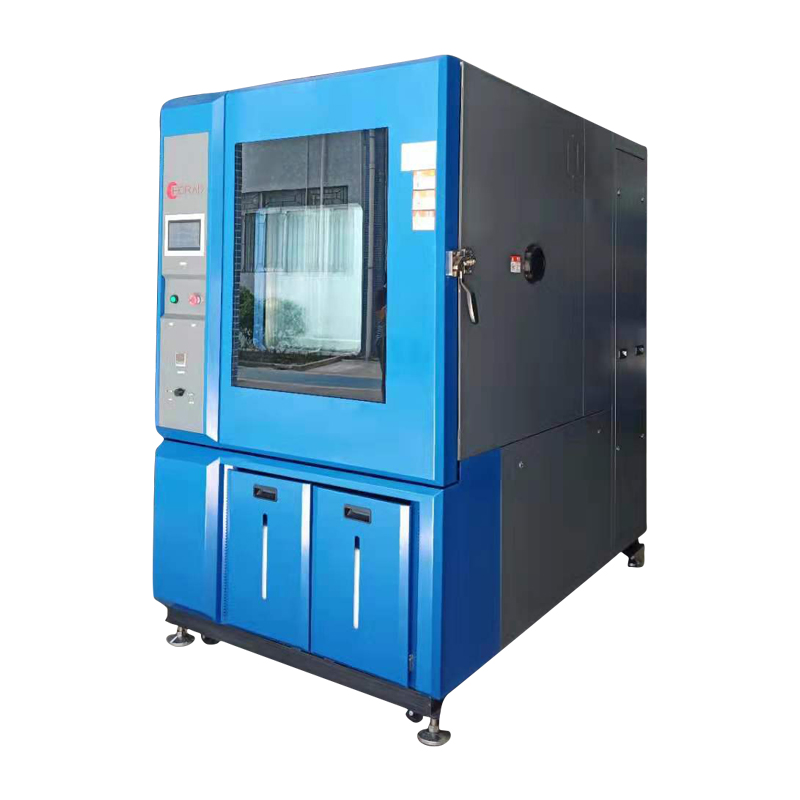

High and low temperature test chamber

The high and low temperature test box simulates the temperature change law in the atmospheric environment. It is mainly aimed at the adaptability test of electrical, electronic products, and their components and other materials when transported and used in a comprehensive environment of high temperature and low temperature. For product design, improvement, identification and inspection and other links.

It is suitable for the industry to electronic electrician, automobile and motorcycle, aerospace, ship weapons, colleges and universities, scientific research units, etc.

The product has a wide temperature control range, and its performance indicators all meet the technical conditions of the national standard GB10592-89 high and low temperature test chamber. B: High temperature test method "The product is subjected to low temperature, high temperature test and constant temperature test. Products comply with GB2423.1, GB2423.2, GJB150.3, GJB150.4, IEC, MIL standards.

Features

l On the mobile phone (supports Apple and Android systems), install the Taitong APP software, and the mobile phone passes through the company's internal WIFI (no traffic fee)；

l It can monitor and control multiple devices (up to 254), and the operation on the mobile phone is the same as the operation on the controller

l All functions on the controller can be done on the phone；

l The controller needs to be connected with the company's network cable (optional network port model controller is required)；

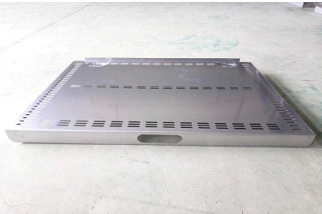

Optimized return air duct design, as shown in the figure

Compared with ordinary "U"-shaped air supply, the temperature field is more uniform

Within -40~+150℃, the deviation is ±1.0℃

Suitable for small test equipment

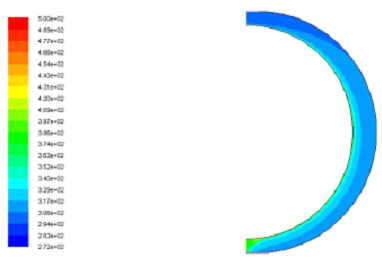

Wind pressure analysis

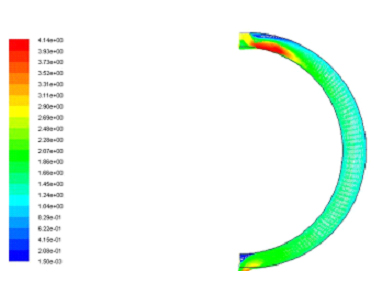

Velocity Vector Analysis

Wind speed analysis

temperature analysis
